RAB Lighting

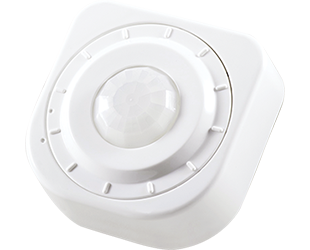

RAB LOSBAY800 Occupancy Sensor 120VAC to 347VAC
RAB LOSBAY800 Occupancy Sensor 120VAC to 347VAC
Regular price
$65.00 USD
Regular price
Sale price
$65.00 USD
Unit price
/
per
Couldn't load pickup availability
LOSBAY800
High Bay occupancy sensor for use with BAYLED, AISLED and RBAY fixtures.
Mounting Height: Up to 40 ft
Relative Humidity: 5-95% non condensing
Sensor Specifications
Time Delay Setting: 5 seconds to 30 minutes
Electrical Rating: 120VAC thru 347VAC, 50/60 Hz
Maximum Load: 120VAC, 60Hz: 0-1000VA, 1/4 hp, 230VAC, 50/60Hz: 0-1000VA, 277VAC, 60Hz: 0-1200VA, 1/4 hp, 347VAC, 60Hz: 0-1500VA, 1/4 hp. Compatible with tungsten, electronic and magnetic ballasts, fluorescent and LED.
Photocell: 1-300fc Light level adjustable setting
Fluorescent Switching Capacity: 6.67 Amps, 785 Watts CFL @ 120 Volts 0.98pF T5HO ballast; 4.33 Amps, 1175 Watts LED @ 277 Volts 0.98pF T5HO ballast.
Operating Temperature: 0°C to 70°C (32°F to 158°F)
Power Consumption: 0.2W
Optical
Coverage Pattern: 360° White Lens (installed) - 100 ft. diameter when mounted at 40 ft., Aisle Lens (included as option) - 100 ft. x 50 ft. wide.
