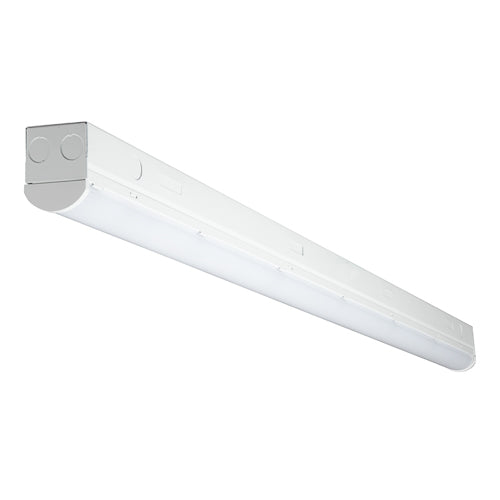

Linear Striplight

E5SLB35D4-840

Energetic Lighting’s E5SLB stairwell, strip and surface mount series is suitable for use in a broad range of commercial and industrial applications. Utilizing today’s latest innovative LED solutions and technologies, this series provides the perfect blend of design, performance and reliability at a superior value to the customer.   An extremely versatile product thanks to its all purpose design and durable construction that consists of a steel housing with tool-less access to the driver and LED boards and multiple lumen output and CCT options.   The E5SLB is well suited for many renovation and new construction applications including stairwells, hallways, restrooms, storage areas, warehouses, under canopy, etc. Providing quality all-purpose reduced glare illumination where needed with maximum energy savings.

Features:

• Designed for easy wall & surface mounting
• Multiple conduit knockouts on all four sides
• Full fixture length wiring access for installation flexibility
• High efficiency polymer diffusing lens for no pixelation
• Utilizes 0-10V drivers as standard
• 89.0% lumen maintenance @ 60,000 hours - L89/60,000 (per IES TM21)
• Projected L70 @ 180,000 hours (per IES TM21)
• Available in 4000K & 5000K @ 83 CRI
• 2793 lms, 19.4W @ 144 LPW (4’, 4000K)
• 5098 lms, 34.9W @ 146 LPW (4’, 4000K)
• 5181 lms, 34.9W @ 148 LPW (4’, 5000K)
• All configurations are DLC Premium 5.1 Pending

Specifications:

• Order Code: 30096
• Model Number: E5SLB35D4-840
• Configuration: 4ft
• Body Color/Finish: White
• Beam Angle: 120
• Lumens(lm): 5098
• Luminous Efficacy: 134
• Input Power: 35
• Input Voltage: 120-277V
• Power Factor: 0.95
• THD: <20%
• Color Temp (CCT): 4000
• Color Rend (CRI):
• Ra83
• Lifetime Rating: >50000
• Warranty: 10yr Limited
• Dimmability: 0-10v
• Operating Temp: -4 to 104
• Environment: Damp
• Safety Listing: UL
• Performance Listing: DLC5.0-P
• Weight: 4.9
• Dimensions: 47.7 x 2.4 x 3.1
