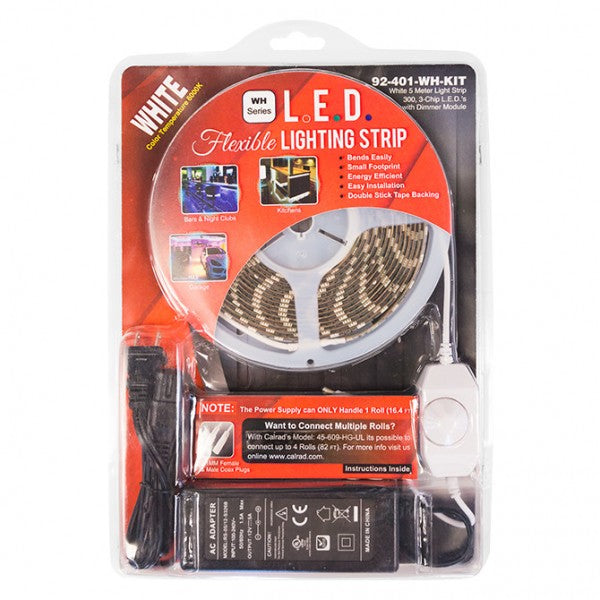

LED Flexible Lighting Strip Kit 6000K

92-401-WH-KIT

92-401-WH-KIT | White 5 M. Reel, 3-Chip L.E.D. Light Strip with 2.1mm Female & Male Coax Plugs
Suitable for Home, Retail and Commercial applications, Hotels, Bars, Restaurants, Kitchens, Furniture, Automobiles, Boats, Home Theaters, A-V Shelves and Cabinets, Equipment Racks, Accent lighting with thousands of possibilities. Please note! for indoor use only.

Specifications:

• AC Input Voltage\ Current: 100-240Vac, 50-60Hz, 0.6A
• Output Voltage\ Current, DC Power Supply: 12 Vdc, 5 Amps
• Color Temperature: White 6000K, 5050 SMD L.E.D.’s
• Roll Current\ Size: Current draw 5.0 Amps, 5M/16.4 ft., width 10mm
• PCB Strip Lighting Color: White
• Package: 1 x 5M White Lighting, 1 x Surface Mount Dimmer, 1 x DC Power Supply

Installation:

1. Measure the surface area where the L.E.D. lighting strip is to be installed.
2. Cut the lighting to the desired length, see diagram 1A.
3. Clean the surface that the L.E.D. strip will be mounting to.
4. Peel the adhesive tape from the lighting strip making sure the 2.1mm DC coax connector for power and control is located in the proper place so connectivity can occur to the L.E.D. inline dimmer. Do not bend the lighting strip at a tight 90 degree radius.

NOTE: The Power Supply can ONLY Handle 1 Roll (16.4 ft), Calrad’s Model: 45-608.
Want to Connect Multiple Rolls?
